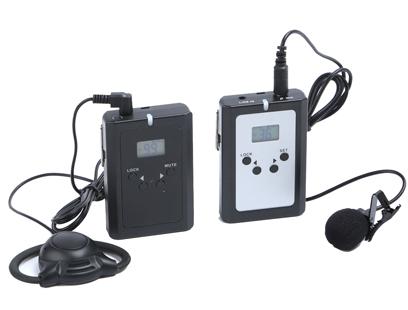

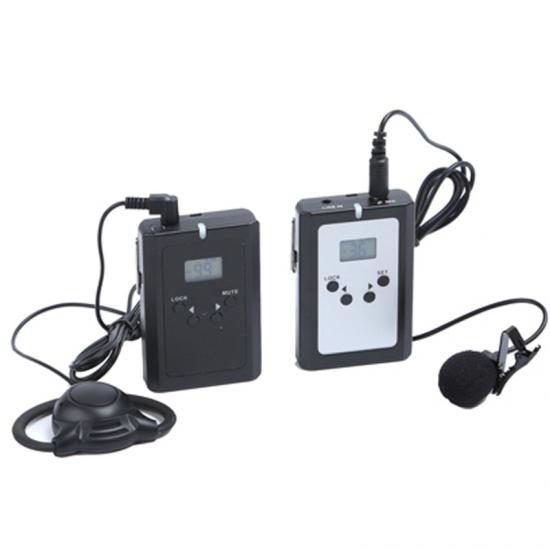

The WAT01-NG2 (next generation 2) is our newest product. It keeps all the essential features (long distance, very clear sound, multi-channels) of our old WAT01 system. It has a new design so that it has contact-charging points, and two-way inputs for transmitters. It can allow two guides to speak at the same time. It can allow MP3 playing and voice talking at the same time.
The WAT01-NG2 system has the following features:
Limitless amount of wireless receivers for each transmitter.
Stationary transmitter available with MP3 playing function. Two way sound mixing function.
Advanced microchips to ensure very little noises and compact size.
Transmitter has mute function and two-way inputs for voice and MP3 file playing. Allow two guides to speak at the same time.
Over 200 meters range from the transmitter to receivers.
50-100 independent channels, up to 25 work simultaneously at the same location.
Receiver rechargeable Lithium battery can last up to 32 hours.
Easy to use ¨drop in〃 multi-unit battery charger and microUSB charging jack.
Slim and compact design, easy to carry. Smallest size in our catalog
|
Paramater |
Value |
|
Wave band |
794-806MHz, 902-915MHz, 823-832Mhz, 863-865MHz, or 2.4GHz |
|
No. of channels |
50-100 for UHF (10-25 work simultaneously at one location), 83 for 2.4GHz |
|
Distance |
150 m for UHF (Open ground/without interference), 50-80m for 2.4 GHz |
|
Output Power |
10 dBm |
|
Sensitivity |
-115 dBm |
|
Frequency Response |
20-16kHz for UHF, 20-10KHz for 2.4G |
|
S/N ratio |
>60 db |
|
Input |
3.5mm microphone/audio |
|
Output |
3.5mm earphone/audio |
|
Power supply |
3.7 V Rechargeable Lithium battery, 18-32 hours battery life for receiver, 4 hours charging time |
|
Dimension |
76mm x 51mm x 16mm |
|
Weight |
45 grams including rechargeable Lithium battery |
Bluetooth shape Out of Ear WAT07-EH3 is a new compact system for daily tour guiding. The receiver has a size of Bluetooth earphone. It can be hanged on ear and is very convenient to use. The speaker of the receiver is out of ear and very easy to be cleaned. There is no need to use a wired headphone. The receiver is powered by rechargeable Lithium battery. The battery can last 8-9 hours per charge. The ear-hook is replaceable and can be positioned for left and right ears.
Read More
Bus tour guide system can be used for multi-language bus tour guide.
Read More
The portable Wireless Audio Transceiver (WAT) system consists of an audio transmitter and a set of receivers, which is perfectly suitable for international conferences requiring multi-language support and scenic spots holding many different touring parties. The WAT01 LL model has a large capacity rechargeable Lithium battery, so that the receiver can last up to 80 hours per charge. The WAT01 LL model has a large capacity rechargeable Lithium battery, so that the receiver can last up to 80 hours per charge
Read More
The ATGS02-NG system is a new audio guide system. It is replacing our old ATGS02 audio guide system.
Read More
